HR 8202

type ST · family 1AS1 · 22.4 kV maximum anode voltage · 90° deflection · 3 windings · 346 g

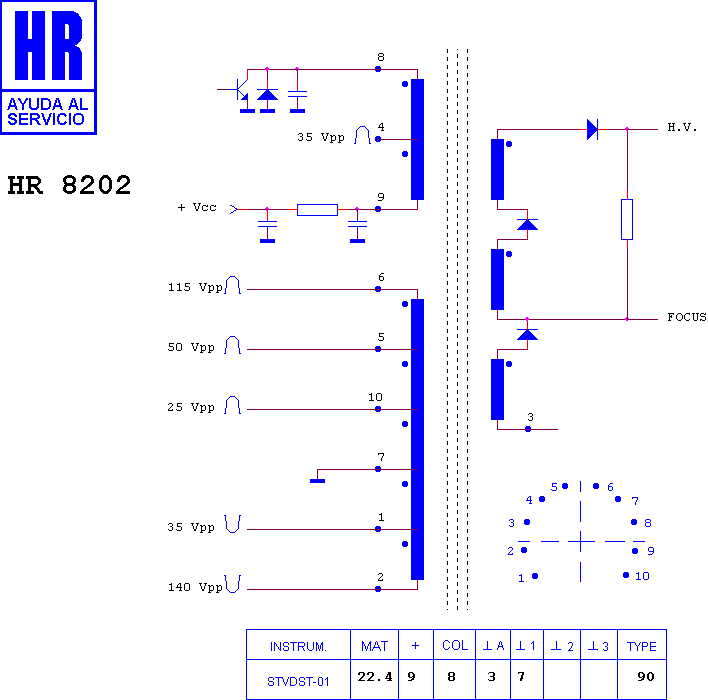

Schematic diagram for HR 8202
schematic

Manufacturer equivalents (2)

F 2076 BM · RTRNF2076BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6586

Fitted to (1)

SHARP 5 P 37
