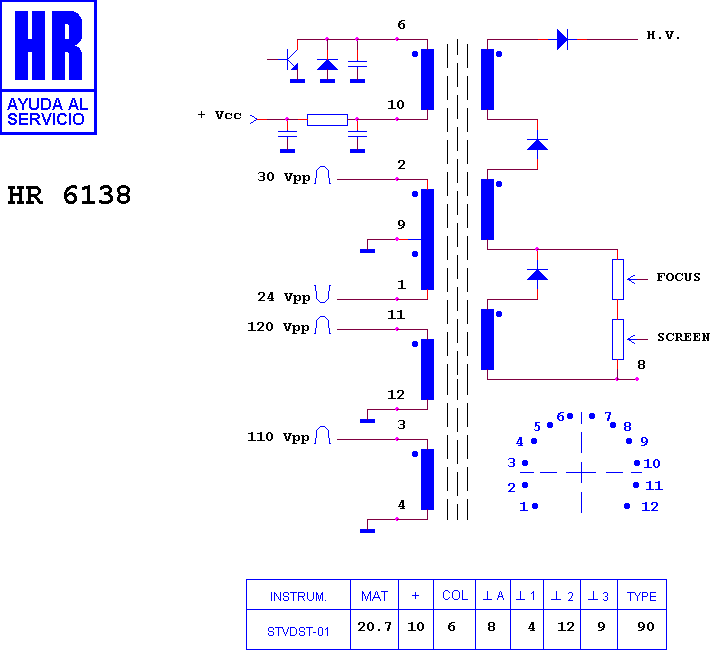

HR 6138

type ST · family 1BP1 · 20.7 kV maximum anode voltage · 90° deflection · 4 windings · 366 g

Manufacturer equivalents (3)

2432811 · 2432811 H · 432811

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8435 · HR 8329 · HR 7166 · HR 8432 · HR 7024 · HR 7525 · HR 7552 · HR 8934 · HR 8460 · HR 8711 · HR 7562

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

HITACHI CPT 2685
