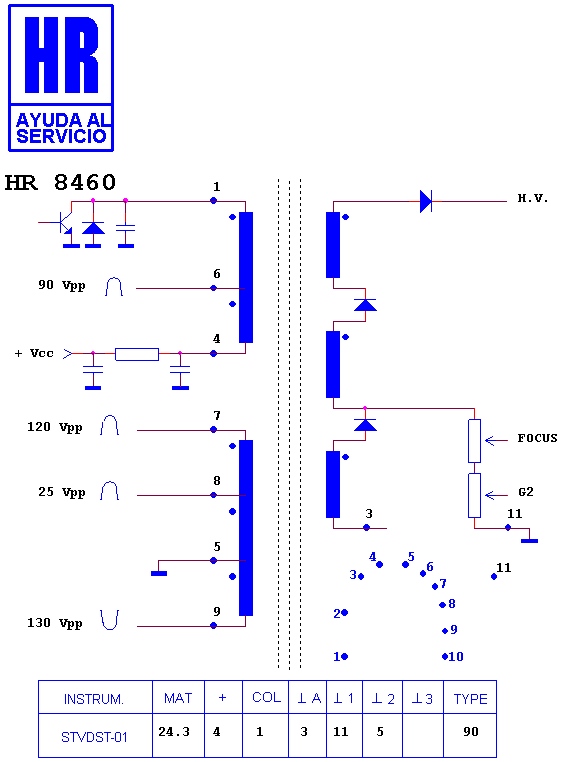

HR 8460

type ST · family 1XP1 · 24.3 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

Manufacturer equivalents (2)

TAT 1412 · TAT 1412 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8261 · HR 6624 · HR 80317 · HR 8489 · HR 8711 · HR 6328 · HR 6241 · HR 8550 · HR 6673 · HR 7718 · HR 6138 · HR 8490

Fitted to (1)

CCE HPS 1405

Search this part in the full database
