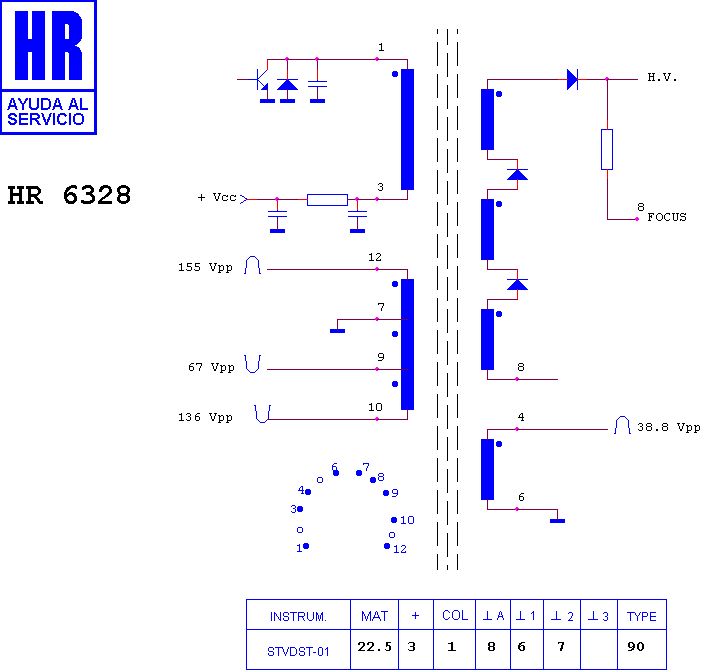

HR 6328

type ST · family 1QS · 22.5 kV maximum anode voltage · 90° deflection · 3 windings · 324 g

Manufacturer equivalents (7)

003220110 · 8 627 210 435 · 8 667 210 434 · 8 667 210 435 · MAT 33156 · RO 376 · TR 376

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7298 · HR 8460 · HR 7299 · HR 6624 · HR 8267 · HR 6673 · HR 8711 · HR 8489 · HR 7421 · HR 8490 · HR 7409

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
