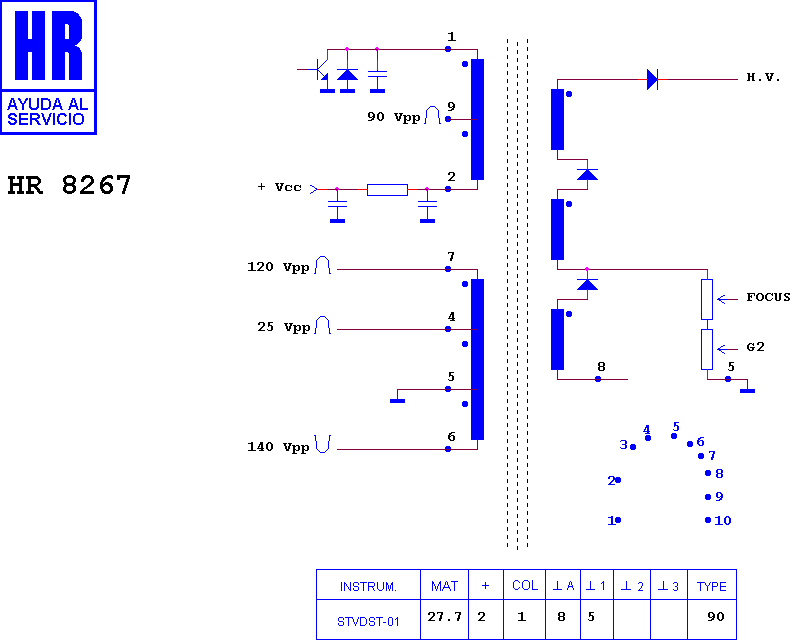

HR 8267

type ST · family 1YP · 27.7 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (5)

TAT 2903 · TAT 2903 A · TAT 2903 B · TAT 2904 · TAT 2904 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80083 · HR 8208 · HR 7299 · HR 8283 · HR 7650 · HR 7906 · HR 8531 · HR 6281 · HR 8213 · HR 8233 · HR 6328 · HR 8711

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

CCE HPS 2901 B · CCE HPS 2902 · CCE HPS 2904 · CCE HPS 2904 A · CCE HPS 2904 E · CCE HPS 2906 B · CCE HPS 2906 C · CCE TV 29 B · CCE TV 29 BLK · CCE TV 29 C · CCE TV 29 D
