HR 8531

type ST · family 1XP1 · 25.3 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

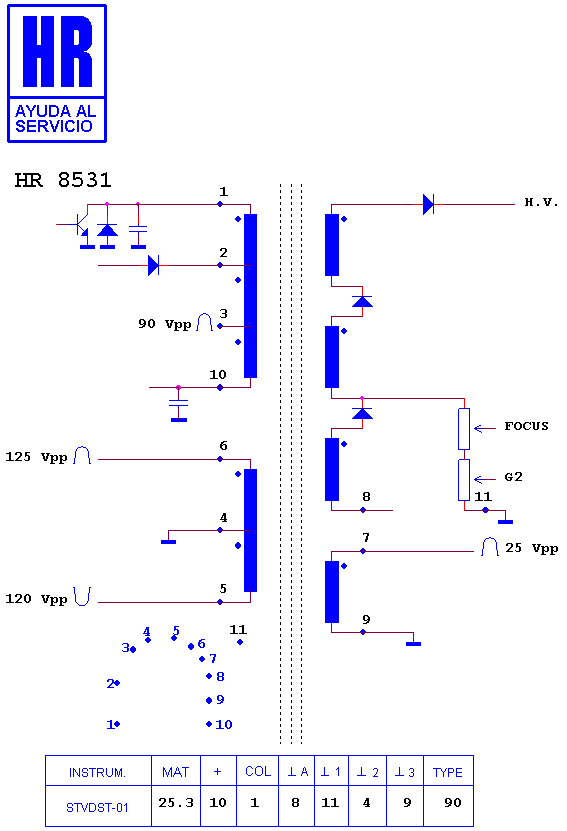

Schematic diagram for HR 8531
schematic

Manufacturer equivalents (3)

1142.5058 · 2422 531 02207 · 531 02207

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7650 · HR 8706 · HR 6624 · HR 8267 · HR 8806 · HR 80083 · HR 8208 · HR 8662 · HR 8283 · HR 8209 · HR 80281 · HR 8233

Fitted to (1)

PHILIPS CHASIS L 10
