HR 8003

type ST · family 1AP1 · 20 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

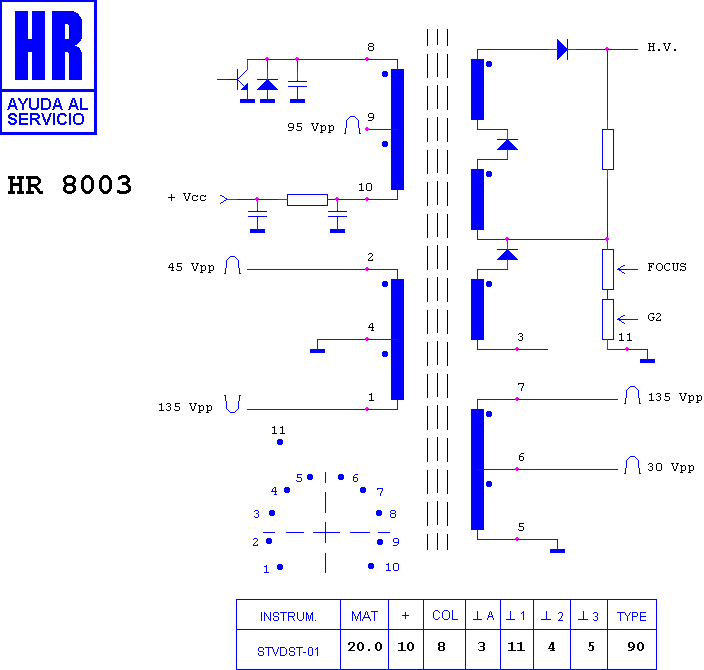

Schematic diagram for HR 8003
schematic

Manufacturer equivalents (5)

104359.50 · 105328.70 · 40332-14 · AFS 305 · PET19-32B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7681 · HR 8304 · HR 8806 · HR 7785 · HR 80083 · HR 8022 · HR 8273 · HR 8662 · HR 8531 · HR 7650 · HR 7298

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TRILUX TAP 2111

Search this part in the full database
