HR 7650

type ST · family 1XP1 · 26.3 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

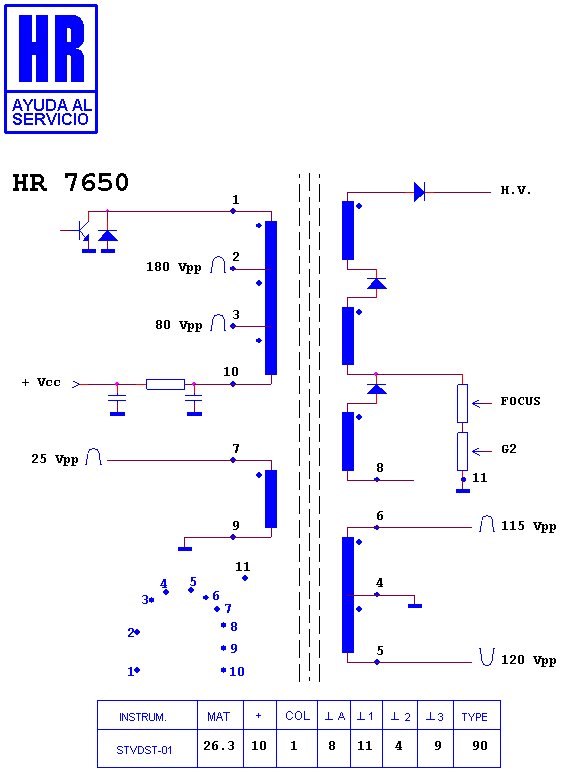

Schematic diagram for HR 7650
schematic

Manufacturer equivalents (55)

003081025 · 07180 · 07181 · 07182 · 07183 · 07184 · 08080 · 08081 · 08082 · 08083 · 08084 · 08130 · 08131 · 08132 · 08133 · 08134 · 1142.5027 · 1142.5027C · 140 17032 · 140 17045 · 140 17055 · 140 17079 · 146 10966 · 3106 108 08082 · 3106 108 32730 · 3106 108 32731 · 32730 · 32731 · 32732 · 32733 · 32734 · 32735 · 38950 · 38951 · 38952 · 38953 · 4806 140 17032 · 4806 140 17045 · 4806 140 17055 · 4806 140 17079 · 4822 140 17032 · 4822 146 10961 · 4822 146 10966 · 8206 270 07181 · 8206 270 08021 · AT 2078-20571 · AT 2079/B0 · AT 2079/B6 · AT 2079/B8 · FAT30213 · FAT30569 · KN30213 · KT 2008 · OV 2076 · TVC/38

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8706 · HR 7681 · HR 8531 · HR 8267 · HR 8806 · HR 8283 · HR 80083 · HR 8208 · HR 8662 · HR 8209 · HR 80281 · HR 8233

Fitted to (20)

PHILIPS 14 GL 1013 · PHILIPS 14 GL 1014 · PHILIPS 14 GL 1015 · PHILIPS 14 GL 1017 · PHILIPS 14 GL 1313 · PHILIPS 14 GL 1314 · PHILIPS 14 GL 1315 · PHILIPS 14 GL 1316 · PHILIPS 16 GL 1033 · PHILIPS 16 GL 1034 · PHILIPS 16 GL 1333 · PHILIPS 20 GL 1043 · PHILIPS 25 PT 4473/75 R · PHILIPS 25 PT 4622 · PHILIPS 25 PT 4622/77 B · PHILIPS 29 PT 4423 · PHILIPS 29 PT 4423/94 R · PHILIPS 29 PT 4473/79 R · PHILIPS CHASIS GR 1 L 1 2¦ VERSAO · PHILIPS CHASIS GR 1 VA
