HR 80281

19.6 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

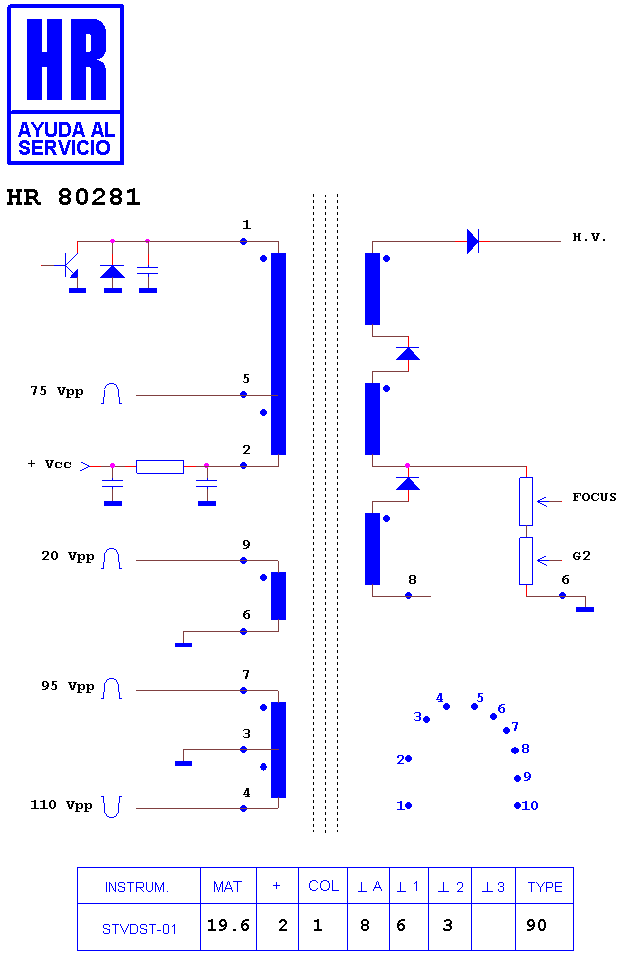

Schematic diagram for HR 80281
schematic (archived)

Manufacturer equivalents (2)

13823031 · OV2094/2303.1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80083 · HR 8209 · HR 8531 · HR 7650 · HR 8706 · HR 8233 · HR 7906 · HR 8711

Fitted to (2)

SAIVOD 21 S 1 RF · SANSUI SVP 21 PC 1
