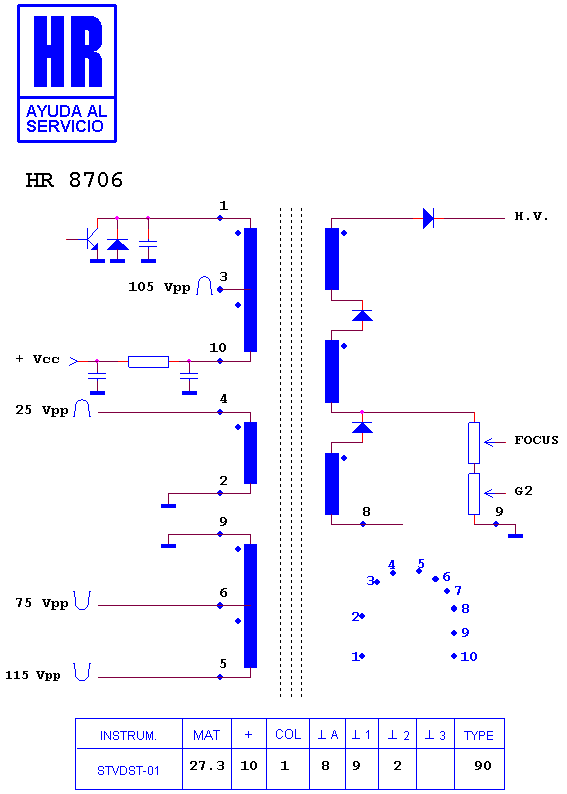

HR 8706

type ST · family 1XP1 · 27.3 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

Manufacturer equivalents (4)

1342.0050 · 1342.0050 A · 1352.5002 · FMD023

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7681 · HR 8209 · HR 8662 · HR 8754 · HR 8261 · HR 6065 · HR 8711 · HR 7650 · HR 8531 · HR 8267 · HR 8283 · HR 80281

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

PHILIPS CHASIS GR 2.4
