HR 8209

type ST · family 1SP1 · 21.1 kV maximum anode voltage · 90° deflection · 4 windings · 340 g

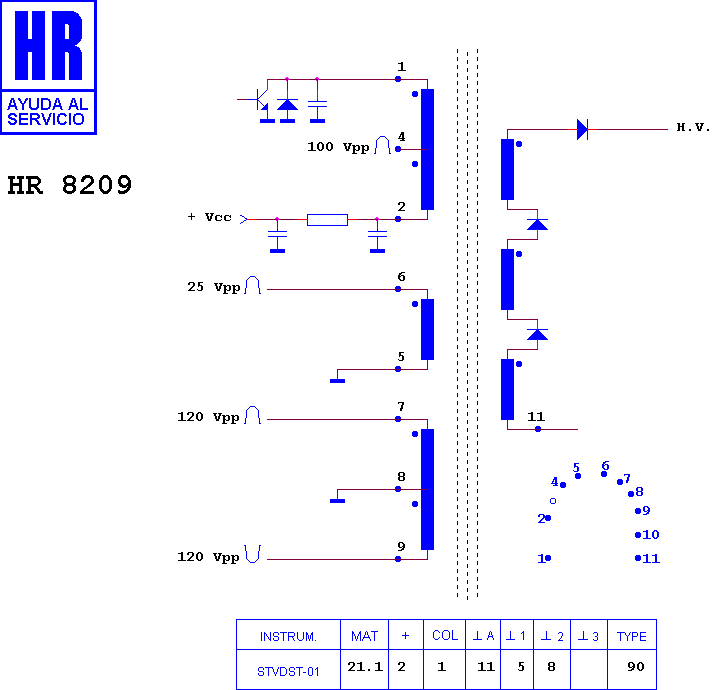

Schematic diagram for HR 8209
schematic

Manufacturer equivalents (7)

1-453-186-11 · 1-453-210-00 · 1-453-210-11 · NX 1731/X4E4 · NX1731 · NX1731//U · NX1731//U2A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8208 · HR 8662 · HR 80083 · HR 80281 · HR 8531 · HR 7650 · HR 8806 · HR 8283 · HR 8706 · HR 8233
