HR 80132

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 474 g

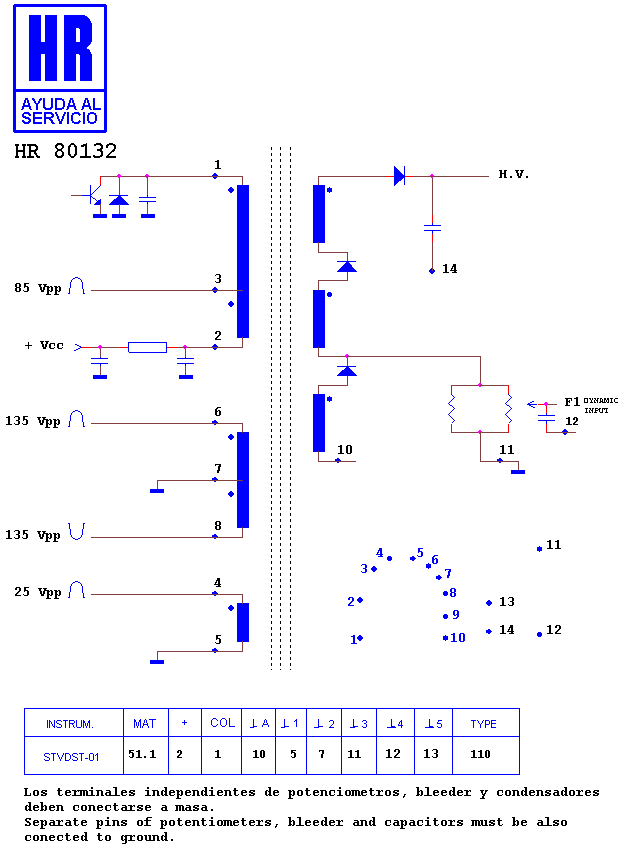

Schematic diagram for HR 80132
schematic (archived)

Manufacturer equivalents (4)

1-453-256-11 · 8-598-814-00 · NX4125//U · NX4125/U2B4

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80140 · HR 8483 · HR 7424 · HR 8890 · HR 8592 · HR 80120 · HR 8927 · HR 6726 · HR 6498 · HR 6083 · HR 6579 · HR 8778

Fitted to (6)

SONY CHASIS BE 5 · SONY CHASIS GE 1 · SONY KV 20 WS 1 E · SONY KV 28 FD 1 E · SONY KV 32 FD 1 E · SONY KV 32 FD 1 K

Search this part in the full database
