HR 8927

27.6 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

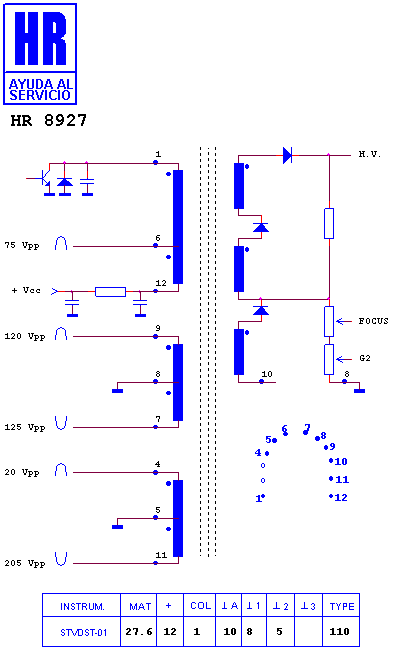

Schematic diagram for HR 8927
schematic (archived)

Manufacturer equivalents (17)

003313144 · 108925.30 · 1152.7006 · 1352.5071 · 1352.5071C · 1352.5071E · 1362.3003 · 13823051 · 13823052 · 312213823052 · 312813823051 · 40348A-39 · AT2078/23052 · DS37 · DS38 · RO888 · TR888

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8483 · HR 80132 · HR 6498 · HR 6726 · HR 80121 · HR 80120 · HR 8890 · HR 7424 · HR 8592 · HR 8875

Fitted to (1)

MIVAR 28 M 21
