HR 8890

type ST · family 1VS · 30.6 kV maximum anode voltage · 110° deflection · 4 windings · 352 g

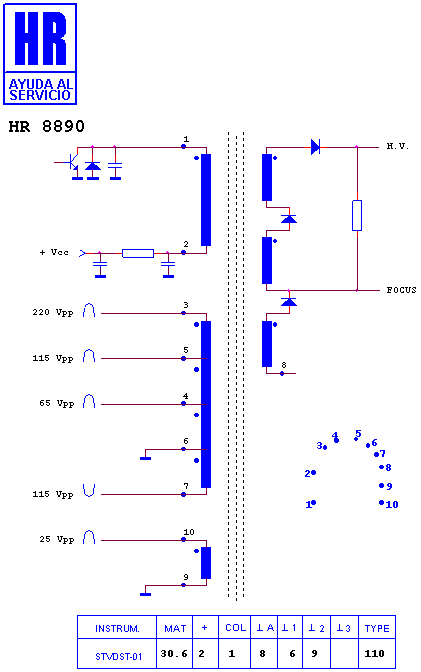

Schematic diagram for HR 8890
schematic (archived)

Manufacturer equivalents (11)

010 053 1 · 010 056 1 · 010 063 1 · 100531 · 100561 · 100631 · 1362.6011 · 1362.6011 A · 1372.6011 · 1372.6011 A · HR 8890

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8592 · HR 7424 · HR 80132 · HR 8483 · HR 6726 · HR 8209 · HR 6516 · HR 80120 · HR 6083 · HR 8927

Fitted to (1)

SCHNEIDER SCINEMA 3205
