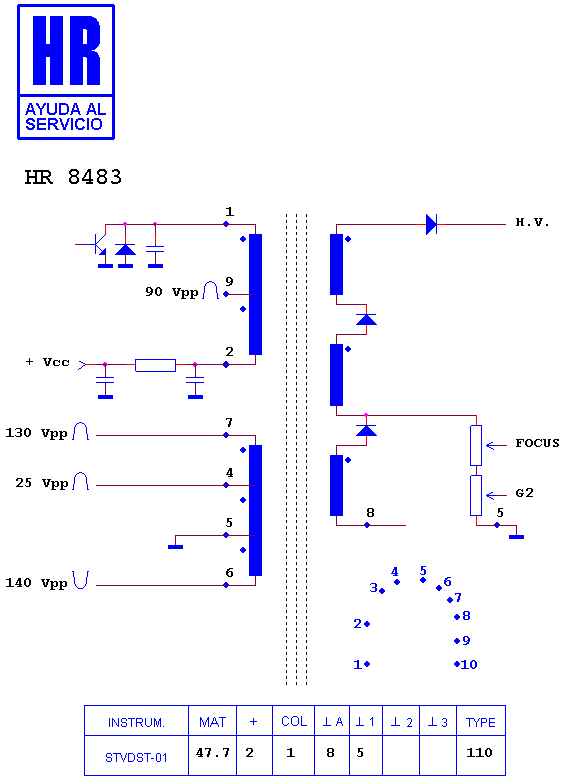

HR 8483

type ST · family 1YP · 47.7 kV maximum anode voltage · 110° deflection · 3 windings · 373 g

Manufacturer equivalents (1)

KFT 4 AA 271 X

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80132 · HR 80121 · HR 8592 · HR 7424 · HR 8890 · HR 80120 · HR 8209 · HR 8778 · HR 8927 · HR 7050 · HR 6498

Fitted to (4)

AIWA 295 AR · AIWA HRM 290 S · AIWA HRM 295 AR · AIWA TV-AR 295 RH
