HR 80140

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

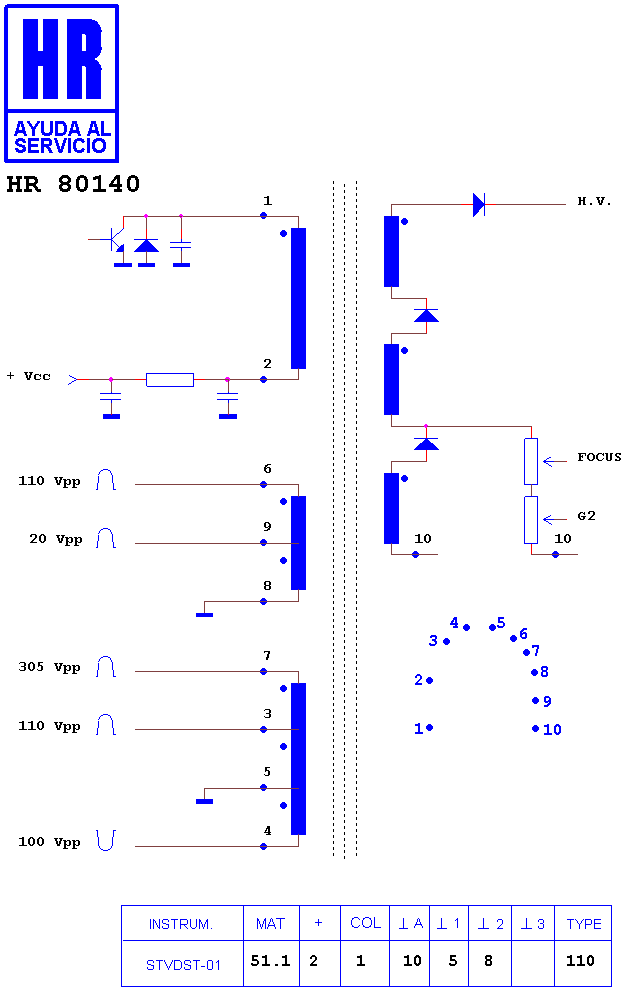

Schematic diagram for HR 80140
schematic (archived)

Manufacturer equivalents (4)

FA038WJ · FA038WJ-M · FA038WJZZ · RTRNFA038WJZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80132

Fitted to (2)

SHARP 32 C 241 · SHARP 32 US 60 BTH
