HR 80137

23 kV maximum anode voltage · H° deflection · 4 windings · 410 g

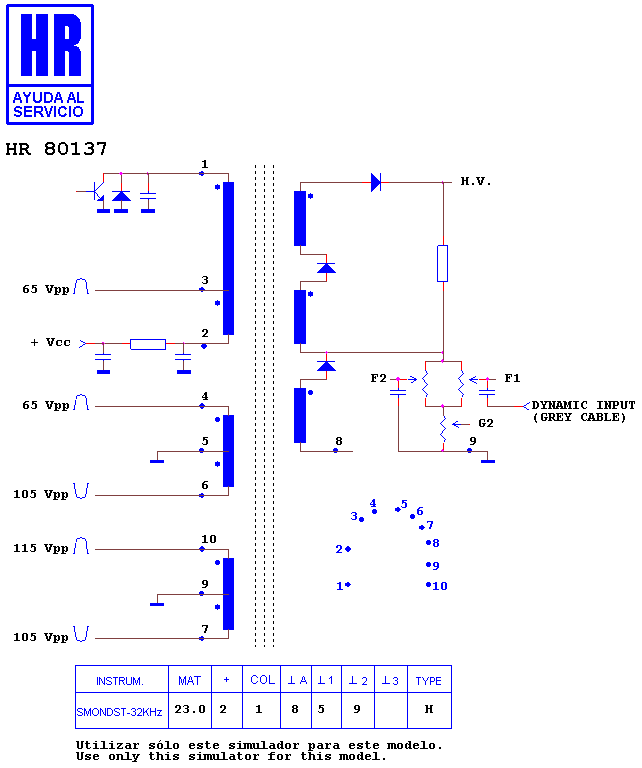

Schematic diagram for HR 80137
schematic (archived)

Manufacturer equivalents (14)

003323148 · 1372.7007 · 1372.7007D · 1372.7077 · 1372.7077D · 242253100061 · 242253100079 · 53100079 · HR 80137 · JF0101-27308 · JF0101-27308B · JF0101-27308BB · RO497 · TR497

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80072 · HR 8720

Fitted to (11)

PHILIPS 28 PW 8620 · PHILIPS 28 PW 8620/12 · PHILIPS 28 PW 8720 · PHILIPS 28 PW 8720/12 · PHILIPS 32 PW 8620 · PHILIPS 32 PW 8620/12 · PHILIPS 32 PW 8720 · PHILIPS 32 PW 8720/12 · PHILIPS 32 PW 8760 · PHILIPS 32 PW 8760/12 · PHILIPS 32 PW 9551
