HR 80072

25.5 kV maximum anode voltage · H° deflection · 3 windings · 382 g

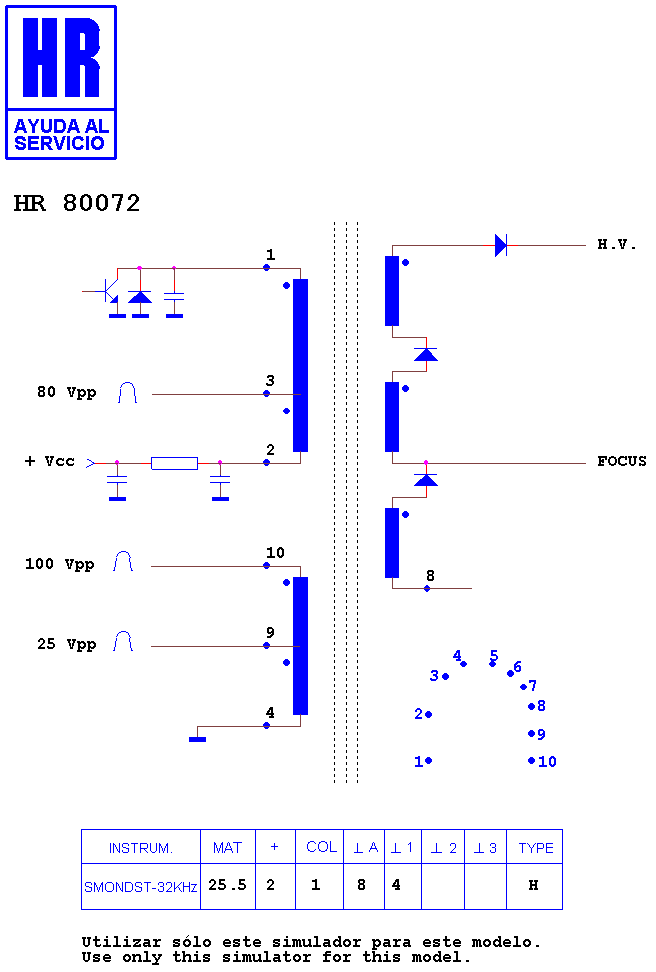

Schematic diagram for HR 80072
schematic (archived)

Manufacturer equivalents (9)

1302.6601 · 1302.6601A · 1302.6601D · 23236628 · HR 80072 · PPE0068 · TFB 3087 · TFB3087AD · TFB3087BE

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7826 · HR 80137 · HR 8720
