HR 6065

type ST · family 1BP1 · 20 kV maximum anode voltage · 90° deflection · 4 windings · 425 g

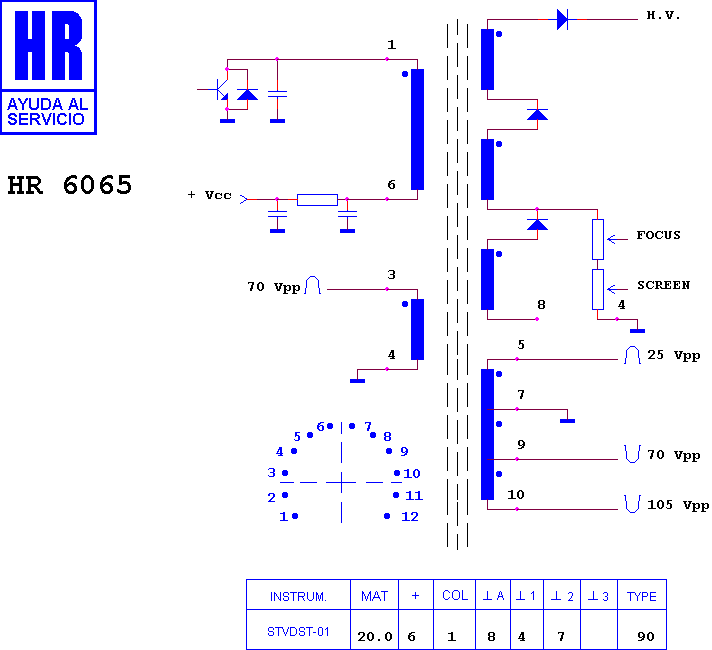

Schematic diagram for HR 6065
schematic

Manufacturer equivalents (2)

2433844 · 2433844 H

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6400 · HR 7906 · HR 8233 · HR 8706 · HR 7872 · HR 7650

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

C.G.E. C 2003 T
