HR 8233

type ST · family 1XP1 · 20.6 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

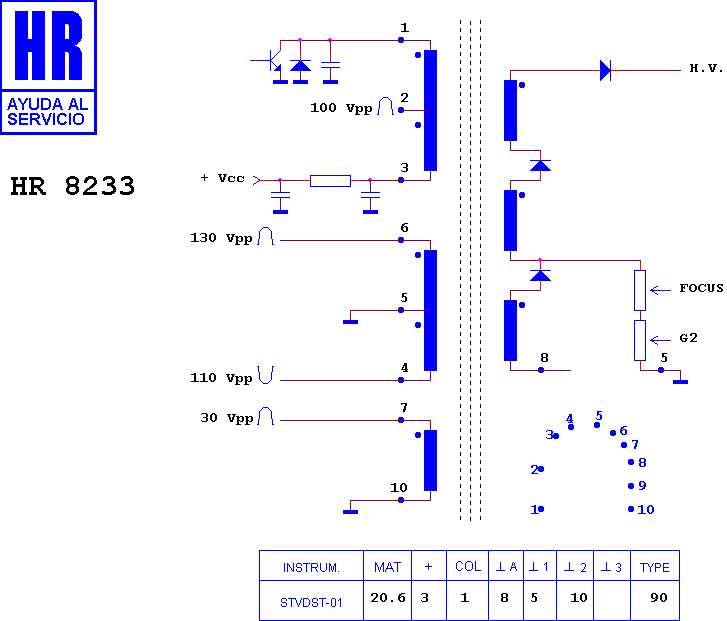

Schematic diagram for HR 8233
schematic

Manufacturer equivalents (7)

3832-0 · 3832-1 · 3832-2 · 4806 140 17028 · AT2077/38320 · AT2078/S1 · KT 2016

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8662 · HR 8706 · HR 8208 · HR 8531 · HR 8283 · HR 8209 · HR 7650 · HR 80083 · HR 8806 · HR 8267 · HR 7785 · HR 6624

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

PHILIPS 21 GR 7560 · PHILIPS 28 GR 7580 · PHILIPS 28 GR 7585 · PHILIPS 28 GR 7680 · PHILIPS 28 GR 7685 · PHILIPS CHASIS GR 1 CL
