HR 7002

type ST · family 1NP1 · 17.9 kV maximum anode voltage · 90° deflection · 5 windings · 276 g

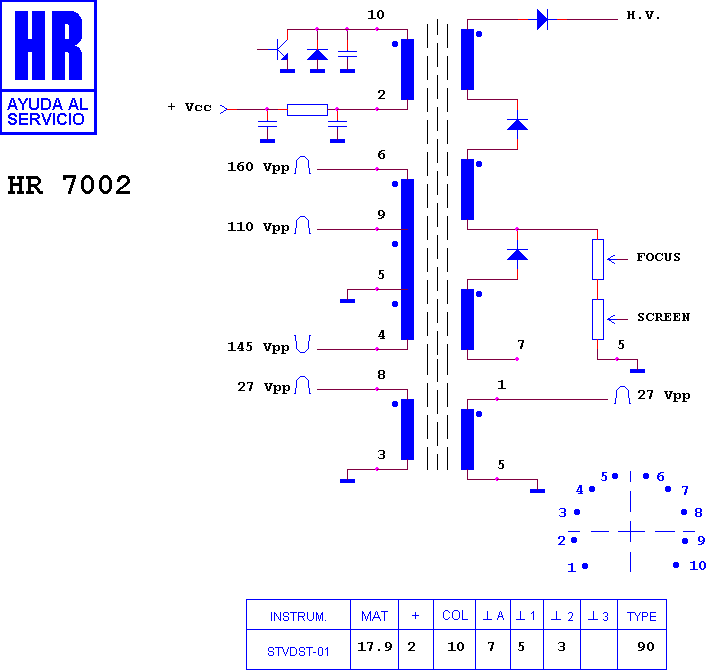

Schematic diagram for HR 7002
schematic

Manufacturer equivalents (7)

17.846 · 32005.00 · 32005.01 · 32005.02 · 32305.00 · 32305.01 · HR 7002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7426 · HR 8267 · HR 7050 · HR 6624 · HR 8283 · HR 7299 · HR 8208 · HR 7706 · HR 8662 · HR 8233

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

ELBE CHASIS PS 1 · ELBE MODELO 14" · ELBE TVC 1401
