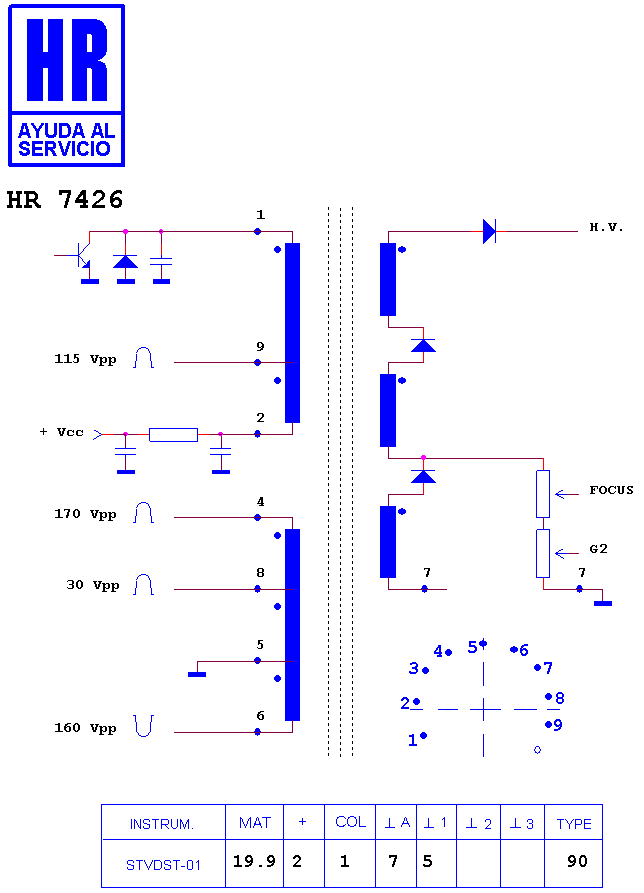

HR 7426

19.9 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

BSC25-01BW7

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8267 · HR 8208 · HR 8662 · HR 7050 · HR 8283 · HR 6624 · HR 7940 · HR 7299 · HR 7785 · HR 7002 · HR 7898 · HR 7469

Fitted to (4)

HSN TC 1420 F · HSN TC 1420 F OLD MODEL · HSN TC 2136 · HSN TC 2181

Search this part in the full database
