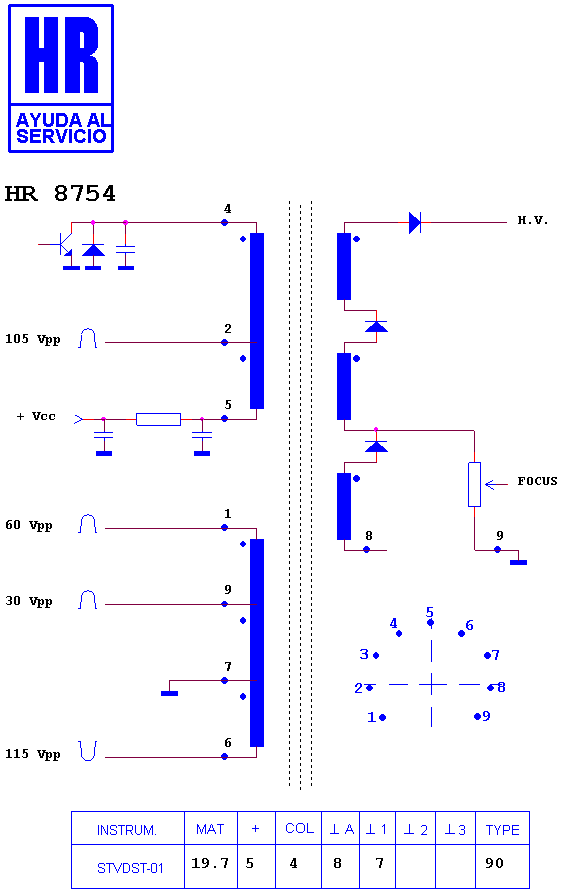

HR 8754

19.7 kV maximum anode voltage · 90° deflection · 3 windings · 400 g

Manufacturer equivalents (1)

BSC35-10

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8261 · HR 7524 · HR 7946 · HR 7872 · HR 7262 · HR 8550 · HR 8706 · HR 8283 · HR 7681 · HR 8711 · HR 7650

Fitted to (2)

CONDOR CA 107 · CONDOR CA 157
