HR 7262

type ST · family 1VCP · 22.1 kV maximum anode voltage · 90° deflection · 3 windings · 403 g

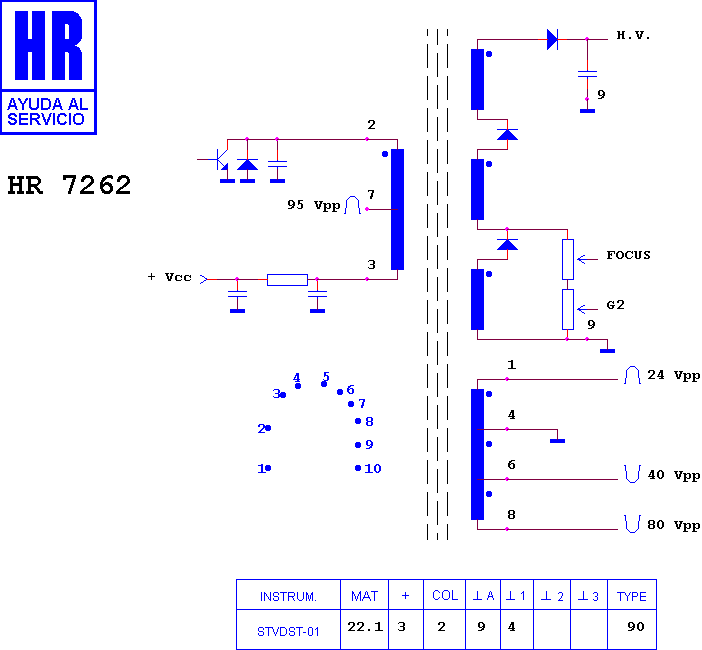

Schematic diagram for HR 7262
schematic

Manufacturer equivalents (4)

7296262 · FAT3999 · TLF 15506 F · TR 7514

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7524 · HR 7718 · HR 8608 · HR 7549 · HR 8550 · HR 8754 · HR 7574 · HR 7595 · HR 7345

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
