HR 7345

type ST · family 1NP · 20 kV maximum anode voltage · 90° deflection · 4 windings · 230 g

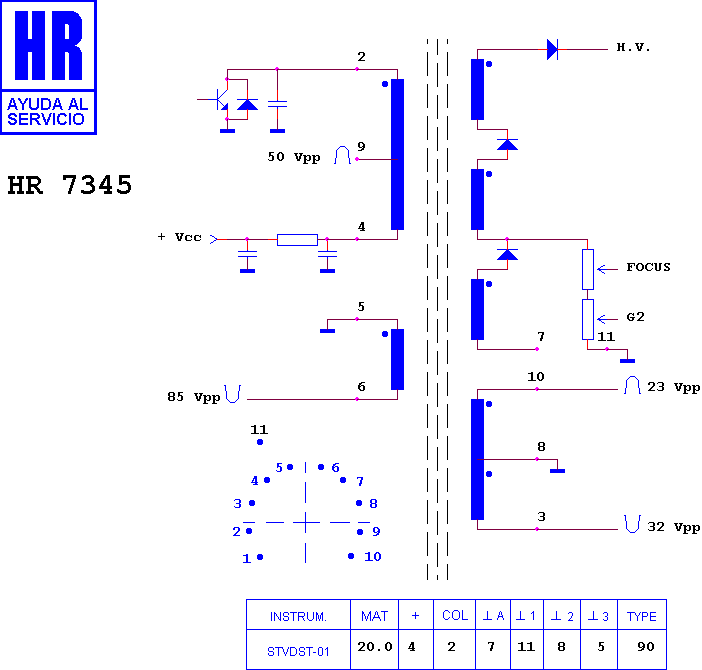

Schematic diagram for HR 7345
schematic

Manufacturer equivalents (7)

003071007 · F 2047 BM · NF 2047 BM · RO195 · RTRNF2047BMVO · RTRNF2047BMZZ · TR195

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7574 · HR 7595 · HR 8608 · HR 7727 · HR 6275 · HR 7262 · HR 8129

Fitted to (10)

SHARP 14 P 51 · SHARP 14 P 53 · SHARP 37 DM 23 H · SHARP 37 DM 23 S · SHARP 37 DM 24 S · SHARP 37 DT 25 H · SHARP 37 EM 33 H · SHARP 37 EM 33 S · SHARP 51 GT 25 S · SHARP CHASIS CA 1

Search this part in the full database
