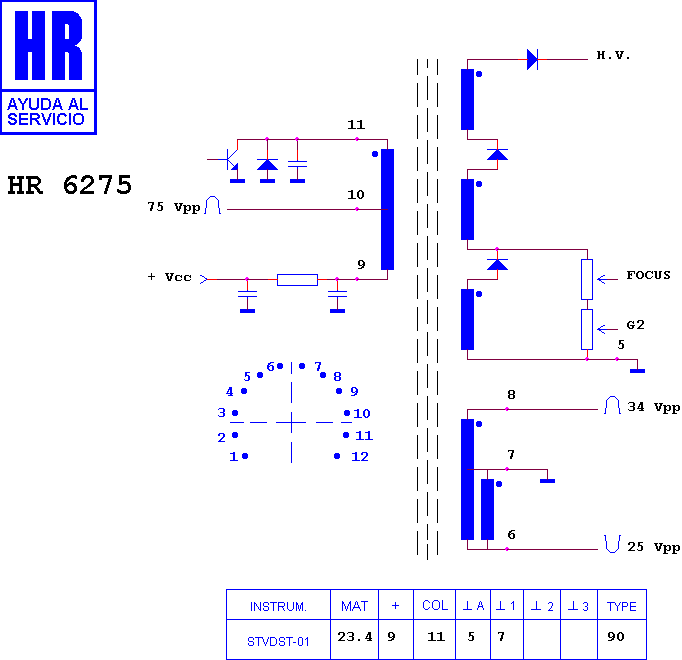

HR 6275

type ST · family 1BP · 23.4 kV maximum anode voltage · 90° deflection · 3 windings · 425 g

Manufacturer equivalents (1)

HR 6275-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8040 · HR 8061 · HR 7531 · HR 7595 · HR 8129 · HR 8558 · HR 7574 · HR 7345

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
