HR 8040

type SM · family 1AP1 · 40.6 kV maximum anode voltage · H° deflection · 3 windings · 360 g

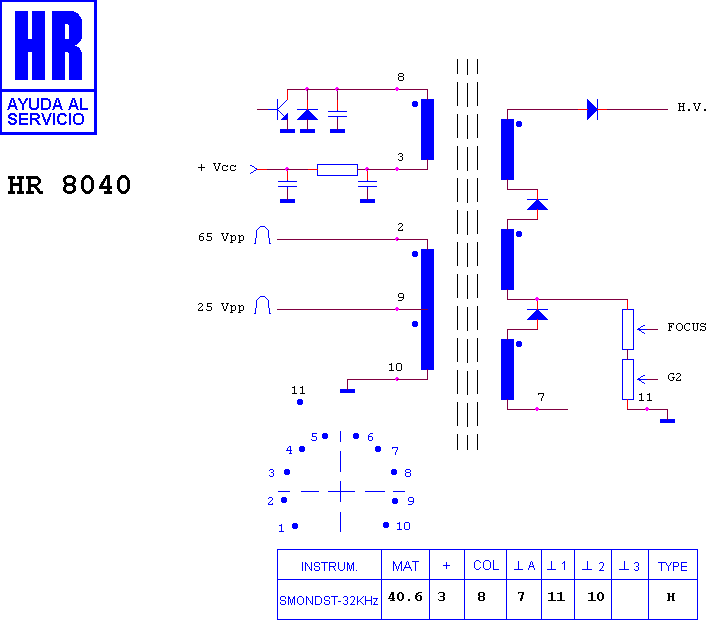

Schematic diagram for HR 8040 — schematic

Manufacturer equivalents (2)

28020410 · HR 8040-00

Search this part in the full database
