HR 7928

type ST · family 1NP1 · 25.5 kV maximum anode voltage · 110° deflection · 3 windings · 272 g

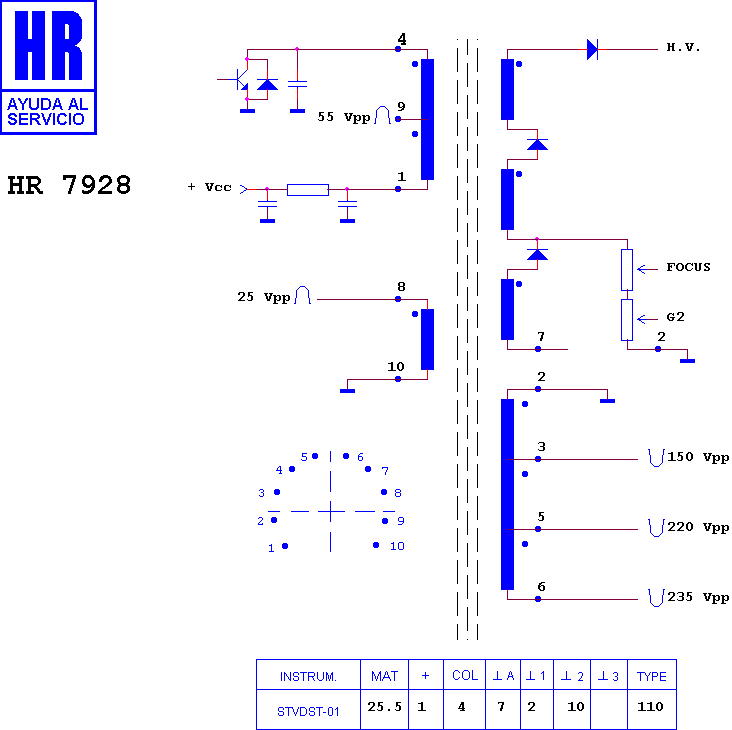

Schematic diagram for HR 7928
schematic

Manufacturer equivalents (4)

104703.20 · 10470320 P2 · 1352.3001 · 40332-27

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7966 · HR 7573 · HR 6504

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
