HR 7205

type ST · family 1AP2 · 22.7 kV maximum anode voltage · 90° deflection · 4 windings · 286 g

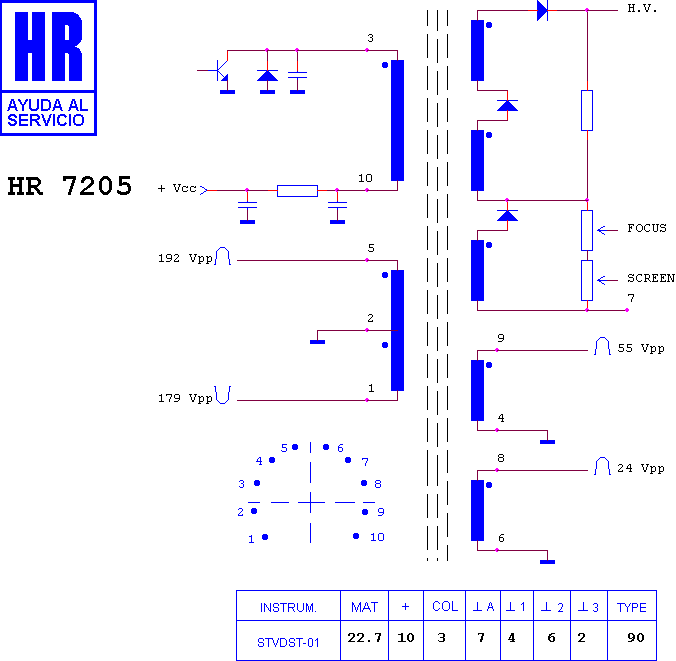

Schematic diagram for HR 7205
schematic

Manufacturer equivalents (3)

094-01069/0.9 · 94-01069/0.9 · HR 7205-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8061 · HR 7531 · HR 7559 · HR 7521 · HR 7558 · HR 6240 · HR 7762

Fitted to (2)

SANYO CEP 2197 · SANYO CHASIS EC 1 LC 21" TUB.PHILIPS
