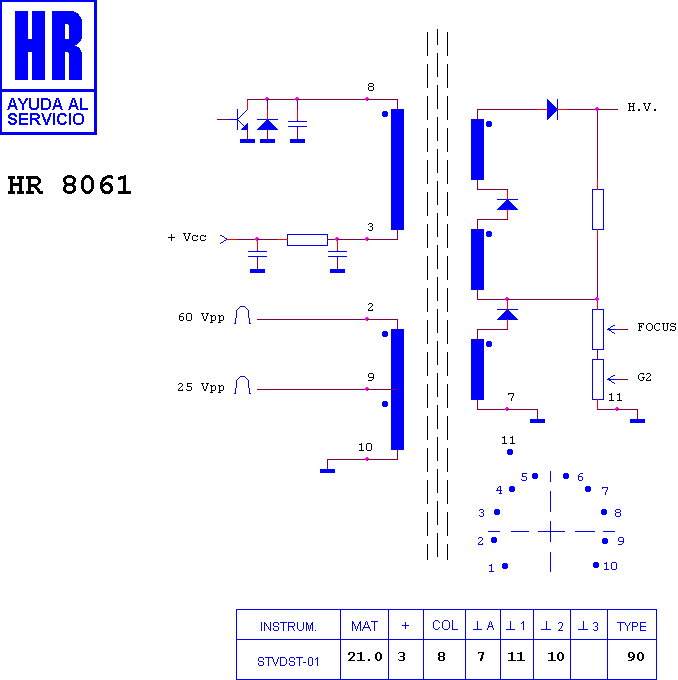

HR 8061

type ST · family 1AP1 · 21 kV maximum anode voltage · 90° deflection · 3 windings · 366 g

Manufacturer equivalents (2)

280268400 · HR 8061-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7531 · HR 7205 · HR 8040 · HR 6275 · HR 7991 · HR 8558 · HR 7559 · HR 7521 · HR 7558 · HR 6240
