HR 7991

type ST · family 1XP1 · 24.5 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

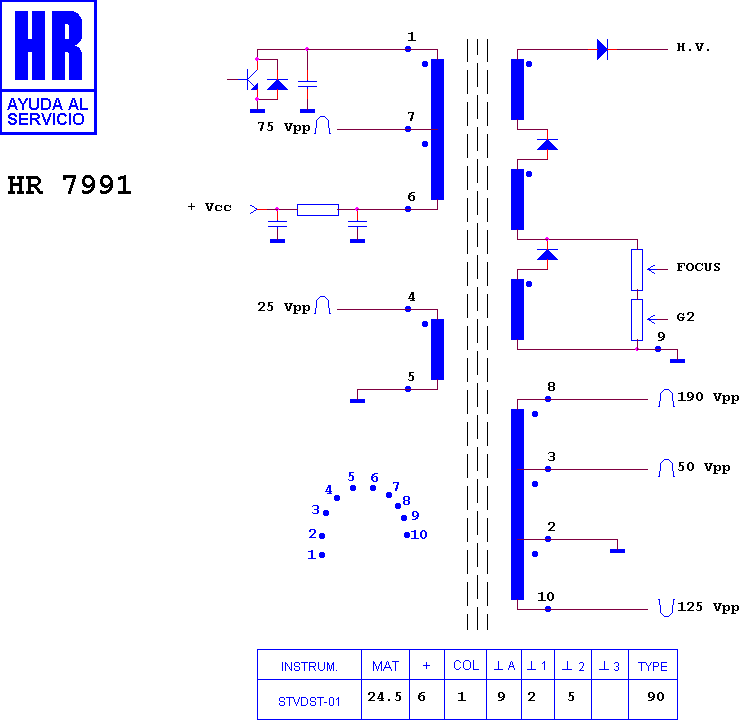

Schematic diagram for HR 7991
schematic

Manufacturer equivalents (1)

154 125 D

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8896 · HR 8172 · HR 8558 · HR 7531 · HR 8061 · HR 8395

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

GOLDSTAR - LG CB 9502 · GOLDSTAR - LG CBT 9502 · UNIVERSUM FK 4388
