HR 8395

type ST · family 1NP1 · 18.3 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

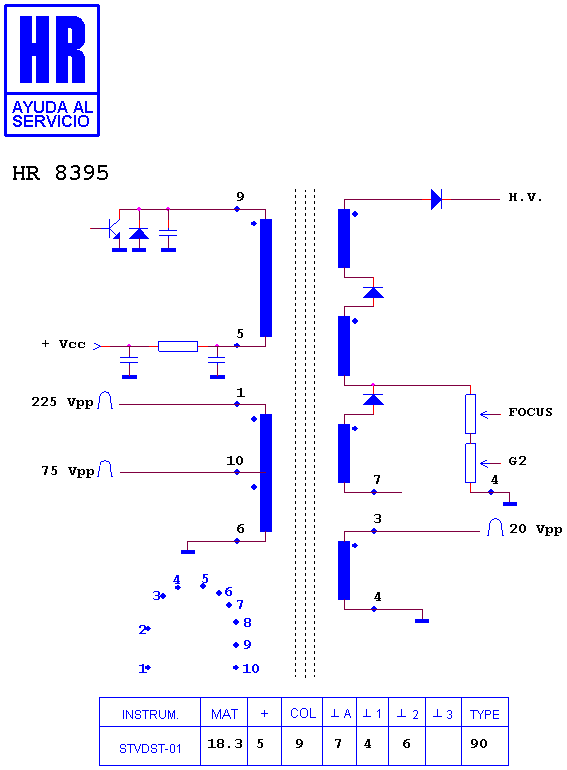

Schematic diagram for HR 8395
schematic

Manufacturer equivalents (6)

003381012 · 440 057 F · 473200.40 · EO440057F · RO818 · TR818

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8896 · HR 8172 · HR 8505 · HR 7991

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

AKAI CT 2137 · AKAI CT 2157 · AKAI CT 2157 P · AKAI CT 2157 PT · AKAI CT 2157 S · AKAI CT 2177 · AKAI CT 2177 DTN
