HR 8505

type ST · family 1XP1 · 19.3 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

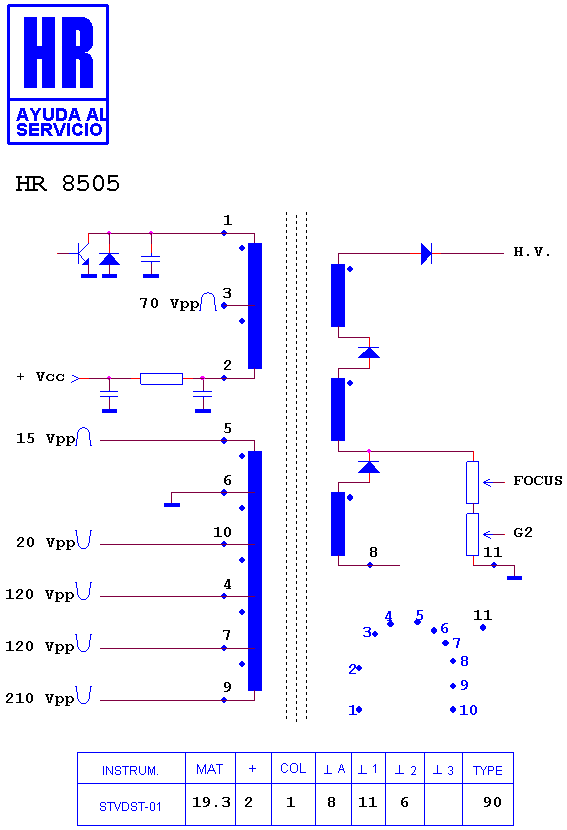

Schematic diagram for HR 8505
schematic

Manufacturer equivalents (4)

CE 41193 · CE 41193-00 C · CE41193-00C-KD · CE41193A0C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8395

Fitted to (1)

JVC C 1918
