HR 7558

type ST · family 1NP · 20.3 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

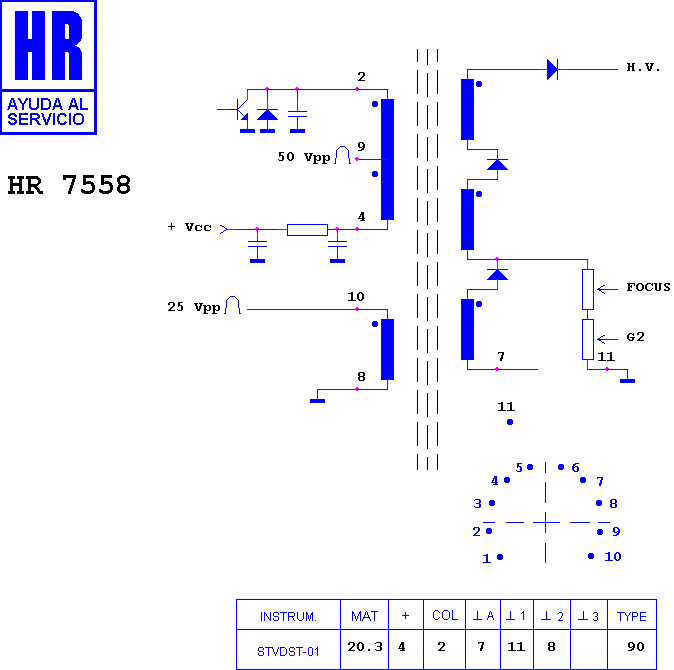

Schematic diagram for HR 7558
schematic

Manufacturer equivalents (4)

F 2022 BM · F 2022 BMZZ · HR 7558-00 · RTRNF2022BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7531 · HR 7559 · HR 7521 · HR 7205 · HR 8061 · HR 6240 · HR 7762

Fitted to (2)

SHARP CHASIS S 3 B · SHARP DV 3750 S
