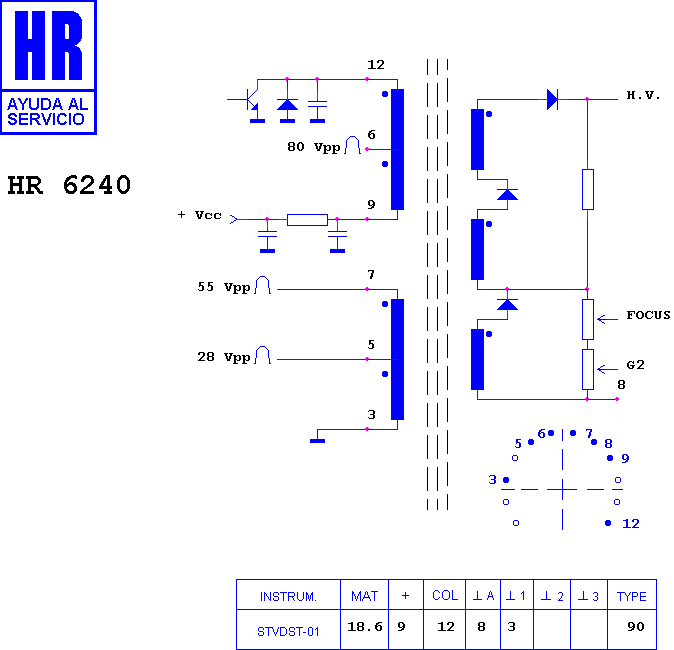

HR 6240

type ST · family 1BP1 · 18.6 kV maximum anode voltage · 90° deflection · 3 windings · 360 g

Manufacturer equivalents (1)

GTA 5040

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7558 · HR 7205 · HR 8061 · HR 7531 · HR 7559 · HR 7521 · HR 7762

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
