HR 8286

type ST · family 1YP · 45.6 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

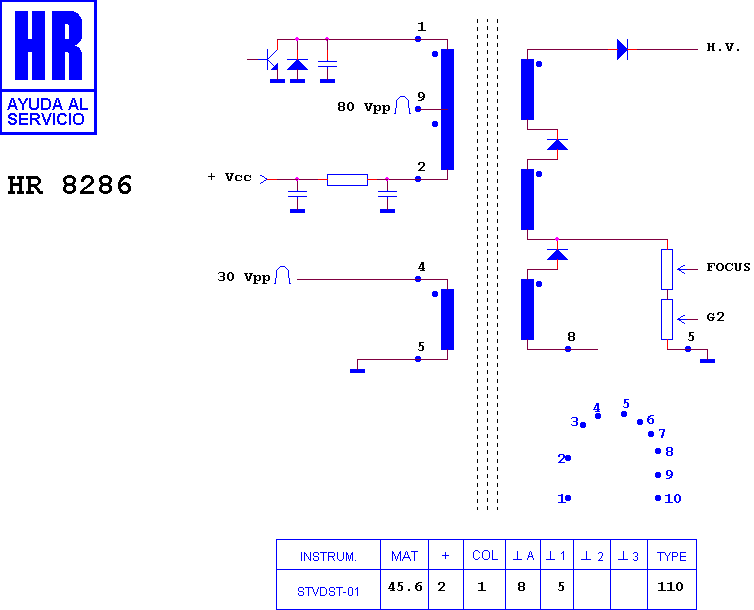

Schematic diagram for HR 8286
schematic

Manufacturer equivalents (5)

171220 · 6174Z6279X · F 171220 · F 2023 CE · RTRNF2023CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7359 · HR 7573

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SHARP C 29 ST 58 · SHARP C 29 ST 98
