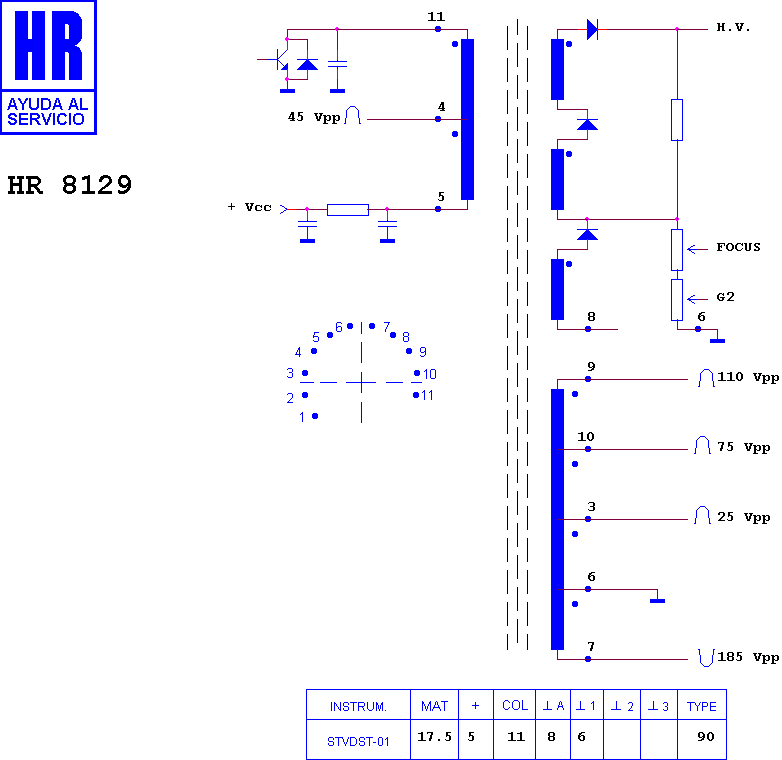

HR 8129

type ST · family 1AP2 · 17.5 kV maximum anode voltage · 90° deflection · 3 windings · 320 g

Manufacturer equivalents (2)

F 5007 PA · RTRNF5007PAZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8191 · HR 7727 · HR 7574 · HR 7595 · HR 7345 · HR 6275 · HR 8608

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SHARP AIQA 8 DSP 40 · SHARP AQA 8 DSP 40 · SHARP MONITOR
