HR 7595

type ST · family 1NP · 19.9 kV maximum anode voltage · 90° deflection · 4 windings · 226 g

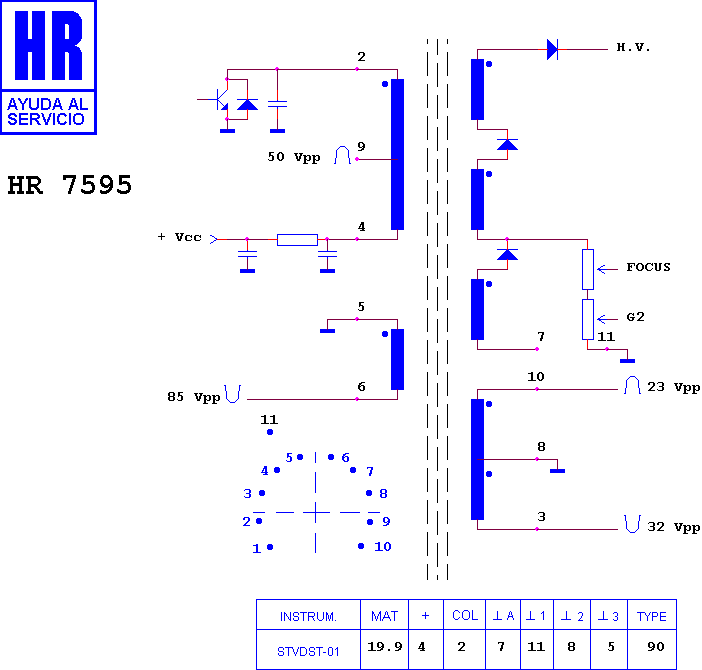

Schematic diagram for HR 7595
schematic

Manufacturer equivalents (12)

003071060 · 103870.40 · 40309-28 · CTRNF2040BMVO · F 2036 BM · F 2040 BM · FAT30768 · NF 2040 BM · RTRNF2036BMVO · RTRNF2036BMZZ · RTRNF2040BMVO · RTRNF2040BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7574 · HR 7345 · HR 8608 · HR 7727 · HR 6275 · HR 7262 · HR 8129

Fitted to (6)

SHARP 51 AM 12 FP · SHARP 51 AM 12 S · SHARP 51 AT 15 · SHARP 51 AT 15 S · SHARP 54 AM 129 C · SHARP CHASIS 5 BS-A
