HR 80066

39.6 kV maximum anode voltage · 110° deflection · 4 windings · 346 g

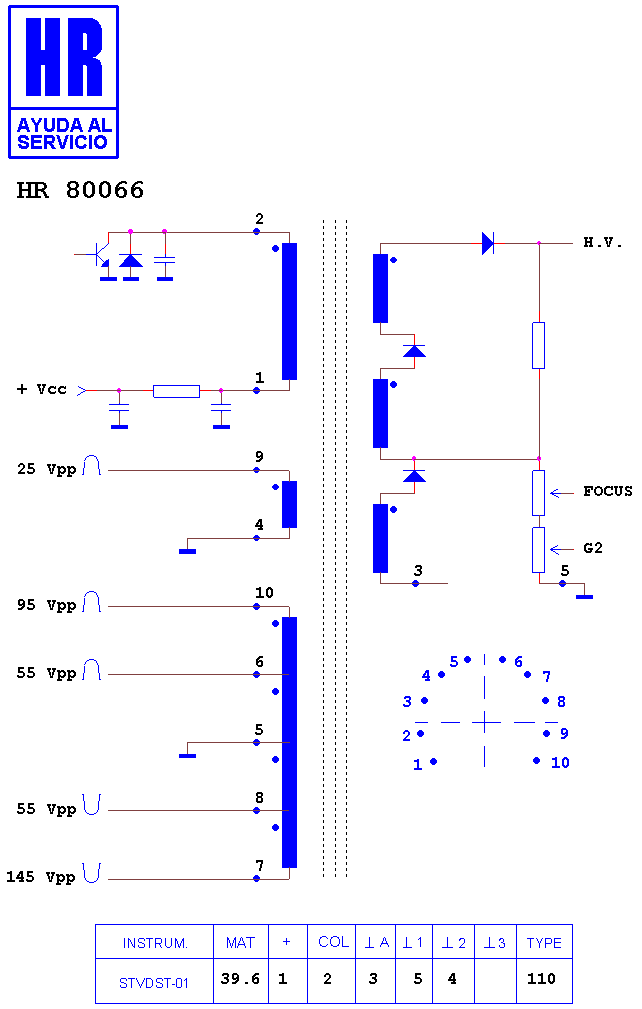

Schematic diagram for HR 80066
schematic (archived)

Manufacturer equivalents (7)

003311132 · 003311186 · 107200.40 · 40330-66 · HR 80066 · RO865 · TR865

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7917 · HR 6302 · HR 7425

Fitted to (3)

THOMSON 25 DX 25 E · THOMSON 25 DX 25 EG · THOMSON 25 DX 25 ES
