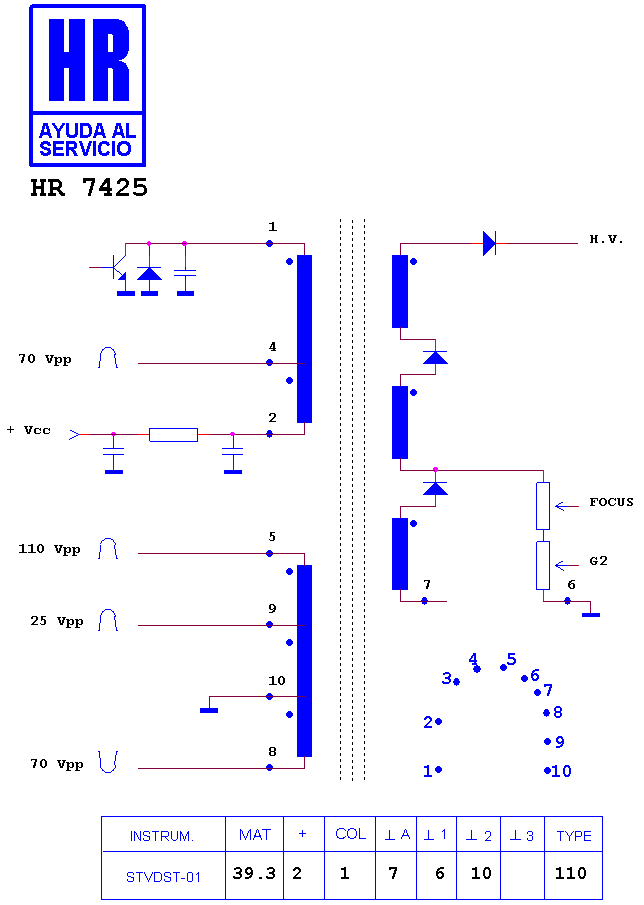

HR 7425

type ST · family 1YP · 39.3 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

BSC 25 N 1503

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8592 · HR 80066 · HR 6302 · HR 80120 · HR 5802 · HR 6579

Fitted to (2)

HISENSE TC 2961 · TOSHIBA 2135 XS
