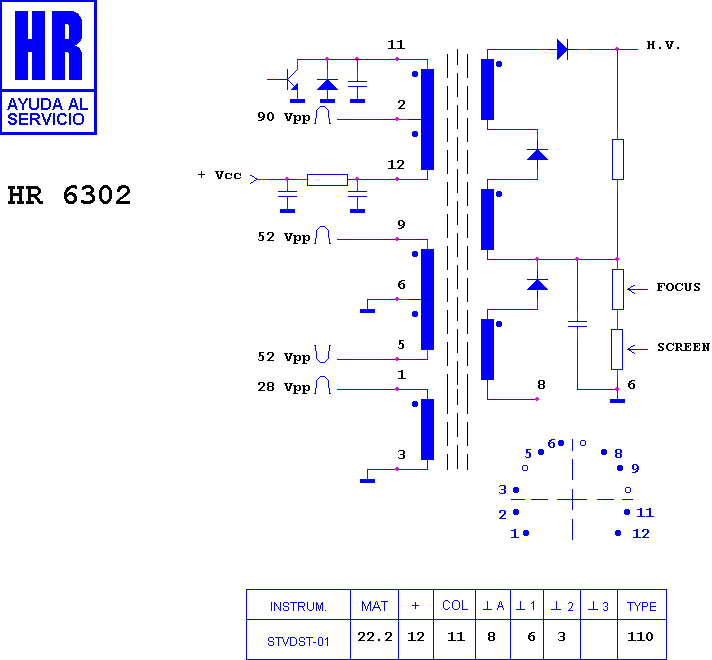

HR 6302

type ST · family 1MP · 22.2 kV maximum anode voltage · 110° deflection · 2 windings · 420 g

Manufacturer equivalents (10)

003011102 · 210.472 · 240120.4011 · 8 627 105 497 · 8 667 210 472 · FAT 3802 · HR 6302 · ME/6088-00 · RO 220 · TR 220

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80066 · HR 6317 · HR 7425 · HR 7917

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (9)

BLAUPUNKT 8000 · BLAUPUNKT 8010 · BLAUPUNKT 8080 · BLAUPUNKT 8667 210 472 · BLAUPUNKT CHASIS FM 100.21 S · SIEMENS CHASIS FM 100-21 S · SIEMENS FC 840 · SIEMENS FC 850/7 · SIEMENS FC 870/22

Search this part in the full database
