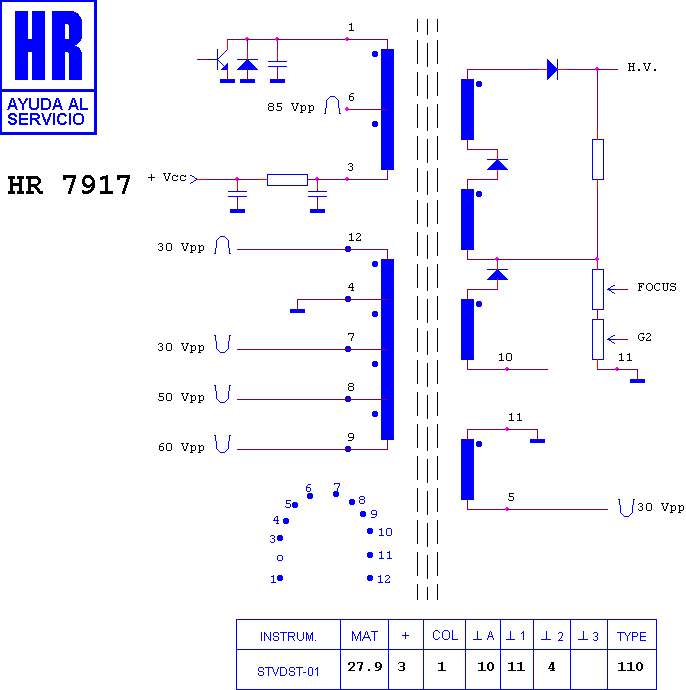

HR 7917

type ST · family 1VP2 · 27.9 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

Manufacturer equivalents (2)

105470.90 · 40337-23

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80066 · HR 6302 · HR 6317

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
