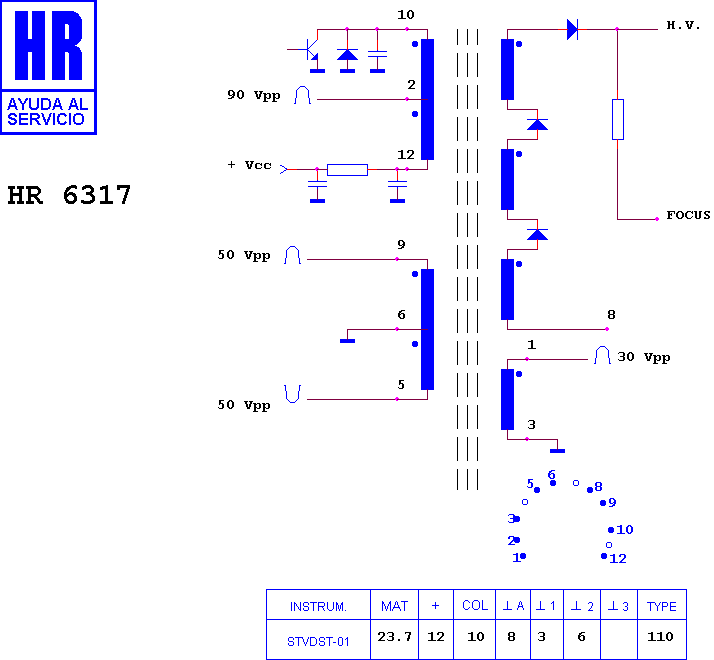

HR 6317

type ST · family 1QS · 23.7 kV maximum anode voltage · 110° deflection · 4 windings · 323 g

Manufacturer equivalents (7)

003220106 · 8 627 105 504 · 8 667 210 528 · FAT 3586 · RO 202 · TR 057 · TR 229

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7917 · HR 6302

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (2)

BLAUPUNKT BRASILIA 841-2082 · SIEMENS FC 880
