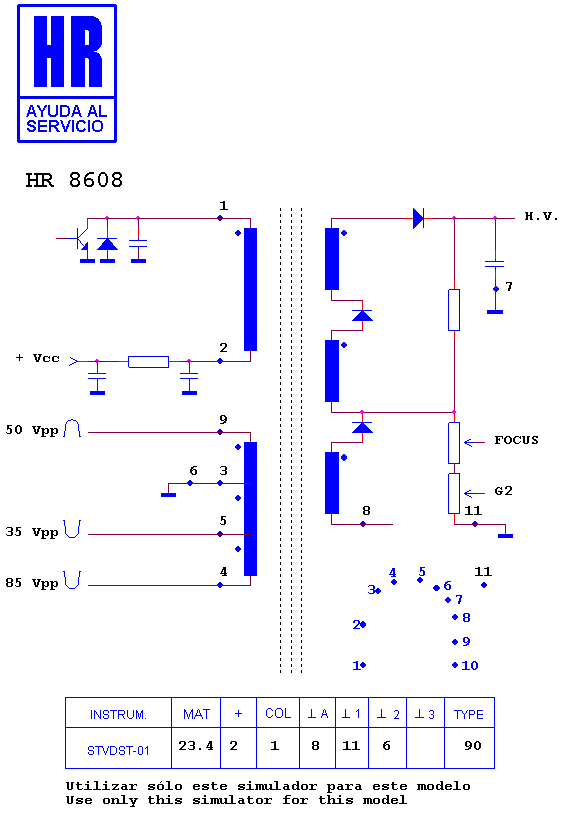

HR 8608

type ST · family 1VCP · 23.4 kV maximum anode voltage · 90° deflection · 3 windings · 393 g

Manufacturer equivalents (1)

FCO 1412 L 02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7727 · HR 7574 · HR 7595 · HR 7345 · HR 8129 · HR 7262

Fitted to (3)

SAMSUNG CS 4551 · SAMSUNG CVM 4967 P · SAMSUNG MONITOR
