HR 8191

type ST · family 1NP1 · 22.8 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

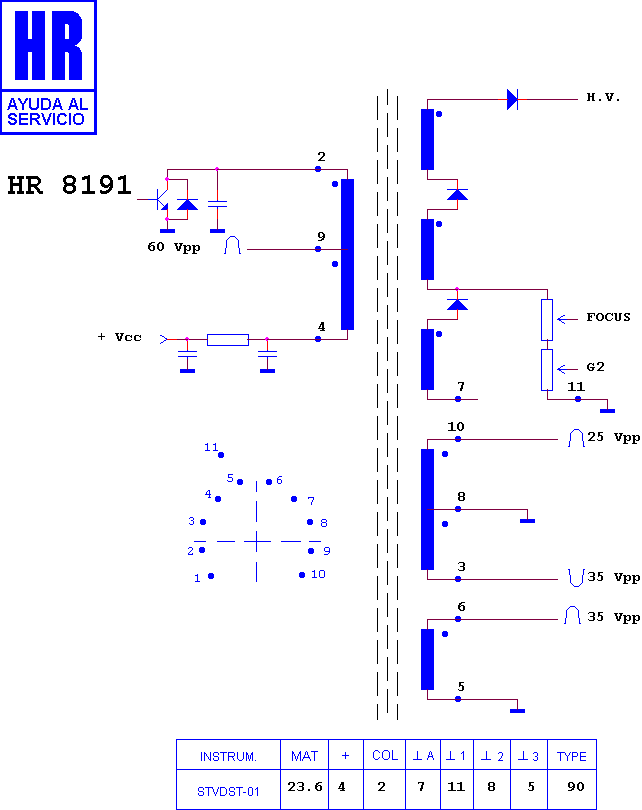

Schematic diagram for HR 8191
schematic

Manufacturer equivalents (8)

21111 · 21112 · 3128 138 21111 · F 2072 BM · NF2072BM · OV 2094-21111 · OV 2094-21112 · RTRNF2072BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7727 · HR 8693 · HR 8129

Fitted to (2)

SHARP 37 GP 20 S · SHARP 37 GQ 21 S
