HR 7718

type ST · family 1YP · 24.2 kV maximum anode voltage · 90° deflection · 4 windings · 402 g

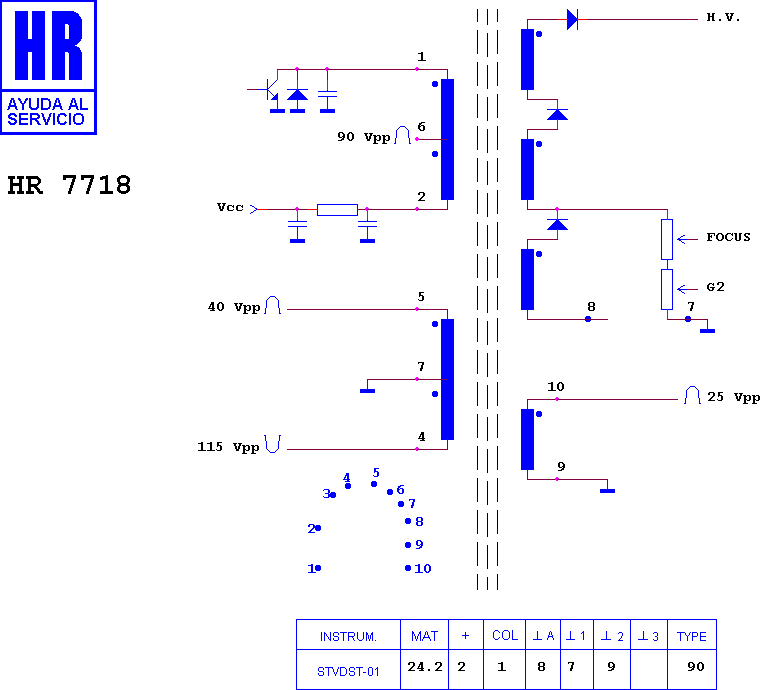

Schematic diagram for HR 7718
schematic

Manufacturer equivalents (6)

334 P 12602 · 334 P 126020 · 334 P 13302 · 334 P 133020 · 4202 · CP 334 P 13302

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8489 · HR 80317 · HR 8460 · HR 7552 · HR 8934 · HR 6673 · HR 8033 · HR 7256 · HR 8550 · HR 7262 · HR 8711

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

MITSUBISHI AUM 137 A · MITSUBISHI MONITOR · MITSUBISHI TC 1441 · THOMSON 4375 · THOMSON MONITOR
