HR 80317

type ST · family 1AP1 · 4 windings · 346 g

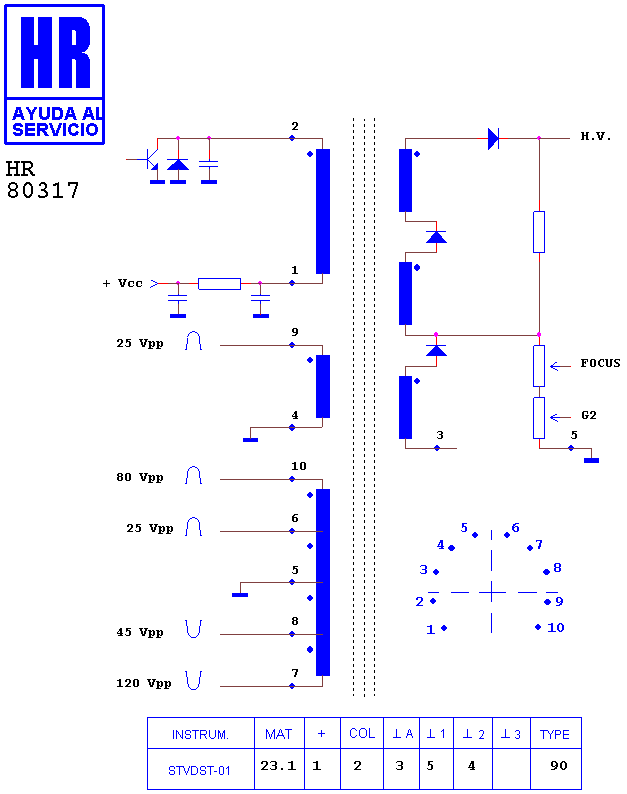

Schematic diagram for HR 80317
schematic (archived)

Manufacturer equivalents (5)

108555.50 · 40330-71 · 40337-71 · F36N.3011 · F36N.3011 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8489 · HR 8521 · HR 8033 · HR 8116 · HR 8490 · HR 7256 · HR 8370 · HR 6516 · HR 6490 · HR 8019 · HR 8778 · HR 7906

Fitted to (2)

THOMSON 32 XF 16/9 · THOMSON CHASIS ICC 17 32" 16:9
