HR 6241

type ST · family 1BP1 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 425 g

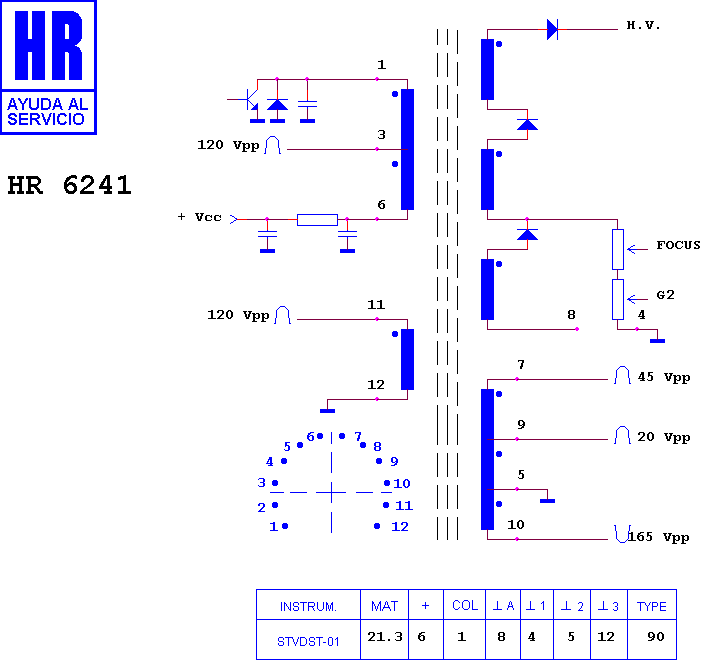

Schematic diagram for HR 6241
schematic

Manufacturer equivalents (2)

FBT 0189 · FBT 189

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8460 · HR 8711 · HR 8550

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

HITACHI 2000 R · HITACHI CDT 2000 R · HITACHI CPT 2000
