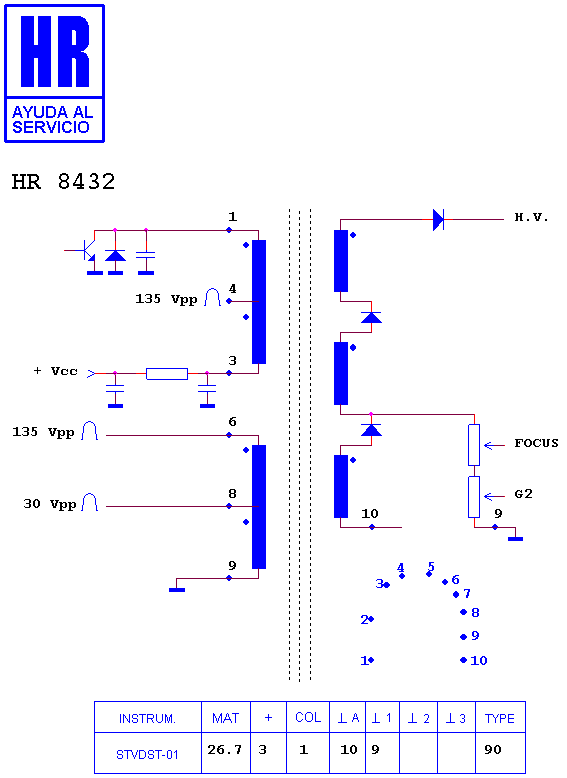

HR 8432

type ST · family 1YP · 26.7 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (2)

04090002087 · KT 9020

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8435 · HR 8329 · HR 7552 · HR 8934 · HR 7525 · HR 7024 · HR 8169 · HR 7903 · HR 7166 · HR 6138 · HR 7132 · HR 6350

Fitted to (2)

SHARP 20 ST 58 · SHARP C 2038
