HR 6112

type ST · family 1BP1 · 17.9 kV maximum anode voltage · 90° deflection · 3 windings · 354 g

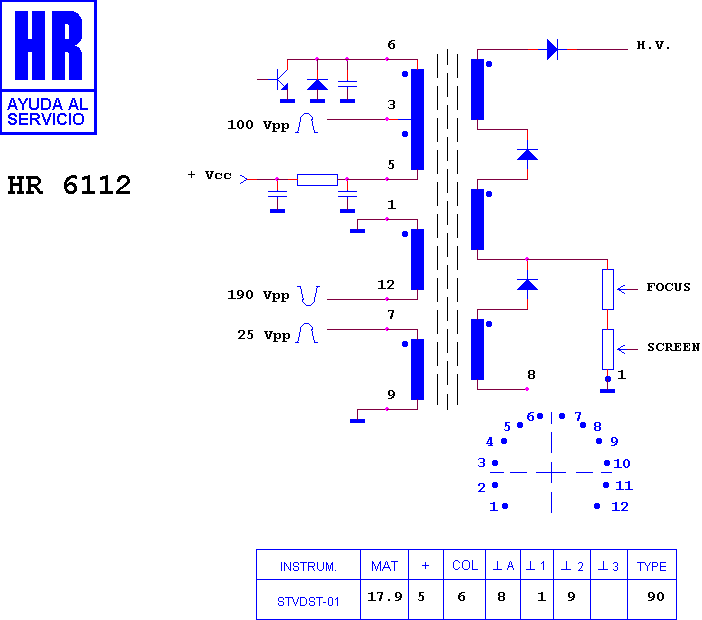

Schematic diagram for HR 6112
schematic

Manufacturer equivalents (3)

37025.00 · 37025.01 · 37325.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7553 · HR 7412 · HR 6571 · HR 7555 · HR 7920 · HR 7512 · HR 7119 · HR 80060 · HR 7372 · HR 7446 · HR 8045 · HR 8536
